Troliu Warn XDC 12 V

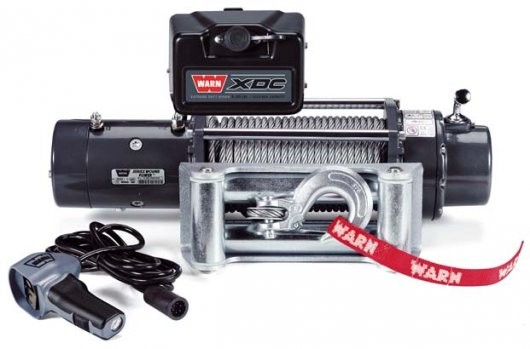

WARN XDC - 12-Volt 4.300 kg pulling capacity

The WARN® XDC has a low profile and compact shape to fit a wide-variety of bumpers. It has a 9,500 lb. (4,310 kg.) line rating and an extreme duty cycle for long, efficient pulls. Additionally, the XDC features a thermometric protection device to ensure long motor life by suspending winch operation if the motor's temperature becomes elevated beyond its normal operating range. For superior resistance to the elements, the XDC has extreme duty winch sealing, and fullface contract drum seals. Other amenities include a 4.6 hp Gen II motor; a control box with a water-resistant contactor; a high-gloss, chip-resistant powder-coated finish over chromate coating for superior corrosion resistance; and a multi-segment cam-actuated brake for positive operator feedback while winching. Also included is a remote control with a 12 (3.7m) lead with a built-in flashlight. Rated Line Pull: 9,500 lb. (4,310 kg.) pull rating No-Load Line Speed: 29 ft./min. (8,8m/min) Motor: 12V 4.6 hp (3,34kW), high-output parallel series wound Geartrain: 3-stage planetary Clutch (freespooling): Sliding ring gear Brake: Automatic direct drive cone Wire Rope: 100 of 5/16 diameter (30m of 8mm) Fairlead: Roller Finish: Chromate with high-gloss dark-gray powder coat
