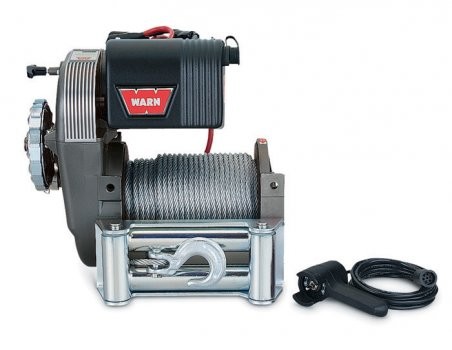

WARN CE-M8274-50, 12-V 3.600 kg pulling capacity
Loved by off-roaders who compete, it's our fastest winch. No load retrieval speed for the M8274-50 is 73.4 feet per minute and that's not all. At 150 feet of 5/16 line capacity Rated Line Pull:
8000 lbs. (3630 kgs.) single-line Motor: 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw, Series WoundTM Remote Control: Remote switch, 12' (3.7m) lead Geartrain: Spur Gear Gear Ratio: 134:1 Lubrication: 6
oz. SAE 30 (non-detergent) Clutch (freespooling): Sliding Motor Pinion Gear Brake: Automatic, disc type Drum Diameter/Length: 3.5 Weight: 110 lbs. (50 kgs.) Wire Rope: 150', 5/16 Fairlead: Roller
